COMNAV V4 Thermal Night Vision Camera

Thermal imaging technology captures faint image details in complete darkness, light fog, smog or low light environments. ComNav's advanced interpolation algorithm for temperature gradients and light intensifier modules results in crystal-clear stabilized monitoring. With sleek, compact designs and flexible mounting, the V series offers one-touch vision access and pan-tilt zoom control for easy and smooth positioning of the camera towards radar and AIS targets. For enhanced performance, the V Series are actively gyro stabilized, with the construction designed to perform in extreme environmental, shock and vibration agile conditions.

• Gyro stabilized video images
• Uncooled high sensitivity Thermal Camera
• Light Intensifier electron tube camera
• High-sensitivity Thermal camera with digital zoom
• Objects seen through fog and smoke
• Search & Rescue, Law enforcement and Ice detection applications
• Radar slaving option
• Video on IP Output
• Crystal clear thermal images in many different color schemes
• Continuous Pan and Tilt 360° provides seamless view coverage
• 100 Hz frame rate and 1000-line resolution gives unmatched clarity
• DVI, VGA, HDMI, composite analog video output
• Marinized housing withstands the harshest conditions
• IP network control Interface capability

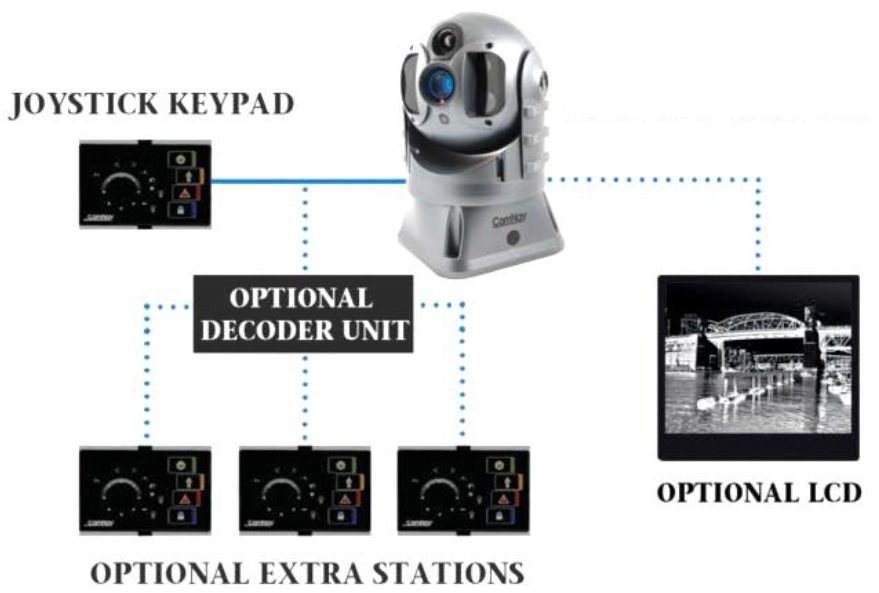

• 3 Axis Joystick control plus proportional Touch joystick

Overview



Specification



THERMAL IMAGING PERFORMANCE
Sensor Type:


Silicon CMOS Uncooled Chip,
640 x 480 pi xels, NETD < 40 mK @
Broadband, LWIR, 30 – 100 FPS
Field of View:
25° (Horizontal), 19° (Vertical)
Focal Length:
25/35 mm
E Zoom:
≤ 8X
Image Processing:

Video grabbing, recording, multi-view
Real-time, PIP, video-analysis

DAYLIGHT IMAGING SPECIFICATIONS
Detector Type:

Ultra low light Long range colour camera
- Superchip II SSNR
Resolution:
1000-line resolution
Minimum Illumination:
 > 0.01 LUX @ colour
Zoom:
30 x optical zoom; 40 x digital zoom
FOV:
30° x 30°

SYSTEM SPECIFICATIONS
Video Tracking:
Optional Features
Pan/Tilt Coverage:

Ultra High Response Gyro - 360°
Continuous Pan and tilt @ 100°/s
Integration Options:





IP control by APP remote controller (option)
Integration with industry standard multi-navigation
displays optional converter interfaces
NMEA 0183 serial communications for radar
tracking, gyrocompass communication, etc.
ComNav GNSS Rate Compass option

ENVIRONMENTAL
Operating Temp Range:


-20° to 60°Celsius, ultra-strength
lightweight aluminum alloy body,
deep anodized surface treatment
Storage Temp Range:
-50° to 80° Celsius
Auto Window Defrost:

Self-cleaning windows, w/ electron beam
surface treatment

DIMENSIONS
Camera:
180 x 180 x 310 mm
Weight:
4.9 kg
POWER
Supply Voltage:
9-24 VDC
Power:
50 Watt

DETECTION RANGE
Human (Half body in water):
1+ km
Human (Full body):
2+ km
Vessel:
3+ km
